Max Steel & Engineering Co. is a trusted name in the manufacturing and export of high-quality forged pipe fittings. With years of expertise and advanced production facilities, we deliver precision-engineered solutions that meet international standards and serve diverse industries worldwide.
Forged pipe fittings are components made by forging, a process where metal is shaped under high pressure to form strong and precise fittings. We offers a comprehensive range of stainless steel, carbon steel, alloy steel, duplex, and super duplex Forged fittings to cater to diverse industrial needs. Unlike cast or welded fittings, forged fittings have a dense, uniform grain structure, giving them superior strength, resistance to wear, and ability to handle high-pressure applications. We also manufacture and supply fittings specially manufactured to meet your custom requirements in a variety of stainless steel and special alloy grades.
Forged pipe fittings are more than just connectors—they are the backbone of any robust piping system. By choosing Max Steel & Engineering Co., you invest in reliability, strength, and long-term performance. Whether you are looking to manufacture, export, or supply forged pipe fittings, we provide solutions that meet your industrial demands while maintaining uncompromising quality. Apart from serving leading Indian industries, Ranfit Metal exports its forged fittings to several countries in the Middle East, Europe, Africa, and Southeast Asia — strengthening its position as a global supplier.
| Specifications | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socket Weld & Screwed-Threaded) |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socket Weld Fittings, Screwed/Threaded Fittings, NPT, BSP, BSPT Fittings |
| Forms | 45 Degree Socket Weld Elbow, 90 Degree Socket Weld Elbow, 180 Degree Socket Weld Elbow, 45 Degree Threaded Forged Elbow, 90 Degree Forged Threaded Elbow, Socket Weld Tee, Socket Weld Coupling, SS Socket Weld Cross, SS Socket Weld Plug, SS Socket Weld Bushing, SS Forged Socket Weld Cap, Socket Weld Union, Socket Weld Half Coupling, Socket Weld Full Coupling, Reducing Coupling, Reducer Insert, Tee Straight, etc. |

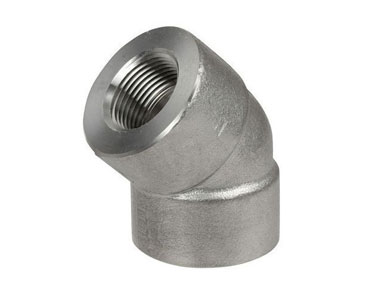

Forged 45 Degree Elbow

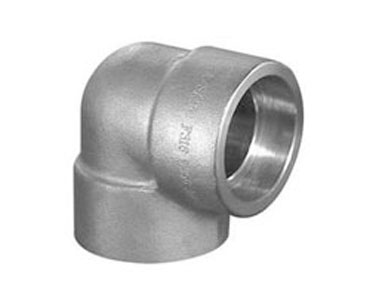

Forged 90 Degree Elbow

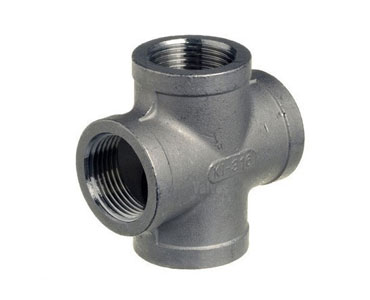

Forged Socket Weld Cross

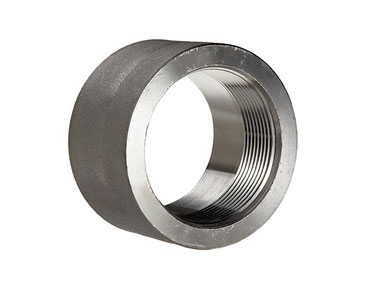

Forged Socket Weld Half Coupling

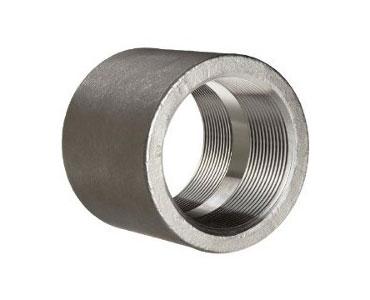

Forged Socket Weld Full Coupling

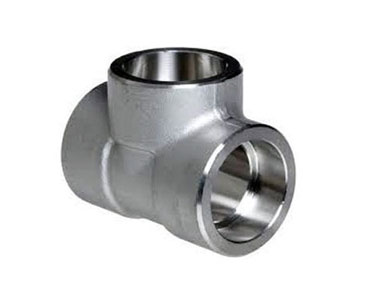

Forged Socket Weld Tee

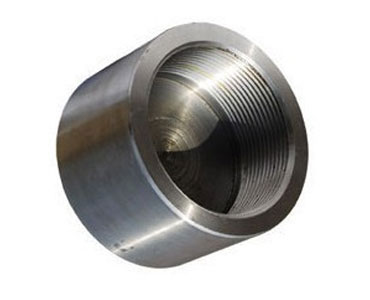

Forged Socket Weld Cap

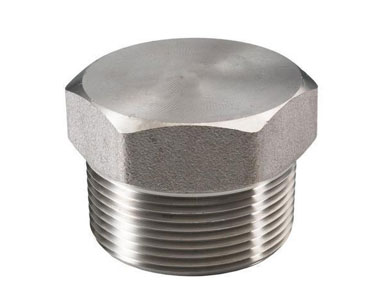

Forged Threaded / Screwed Hex Plug

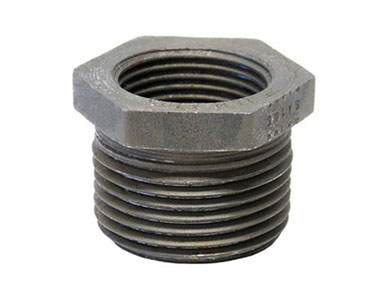

Forged Threaded Bushing

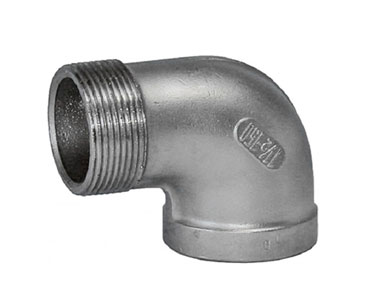

Forged Threaded Street Elbow

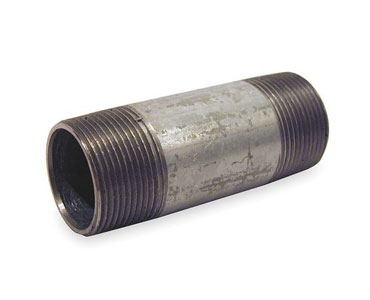

Threaded / Screwed Pipe Nipple

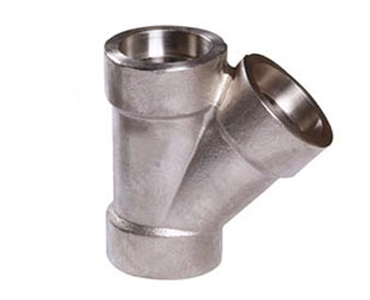

Socket Weld Lateral Outlet

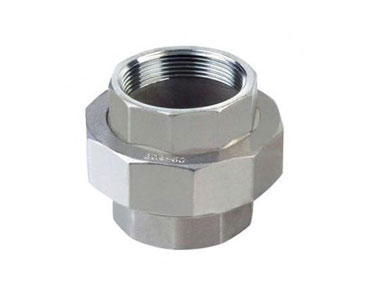

Forged Threaded / Screwed Union

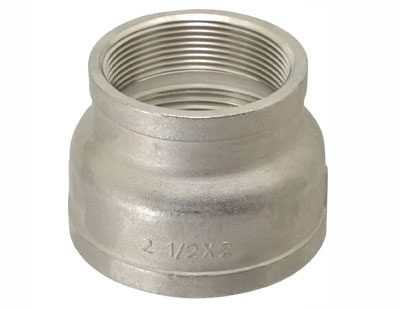

Forged Threaded Eccentric Reducer

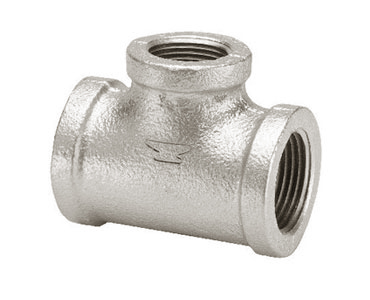

Forged Threaded Reducing Tee

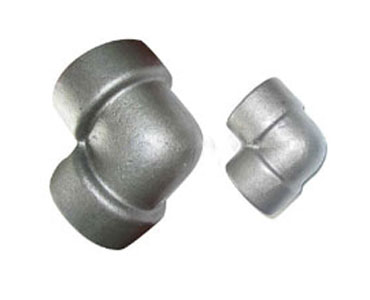

Forged Socketweld Pipe Elbow
| ASTM/ASME | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
|---|---|
| ASME B16.9 | Factory-Made Wrought Threaded Fittings |
| ASME B16.11 | Forged Fittings, Socket – Welding and Threaded |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| Standards | ASTM A182 & ASME SA182 |
| Grades | F201, F202, F301, F302, F304, F304L, F309, F310, F316, F316L, F316LN, F316Ti, F317L, F321, F347, 405, 409, 410, 420, 430, 440C, F904L. |
| Standards | ASTM A182 & ASME SA182 |
| Grade | 2205 (F51, S31803 / F60, S32205), SMO254 (F44, S32154), 2507 (F53, S32750 / F55, S32760), Ferralium 255 (F61 S32550). |
| Standards | ASTM A105 / A350 |
| Grades | Gr. LF2, LF3, ASTM A694 – F42, F46, F48, F50, F52, F56, F60, F65, F70. |
| Standards | ASTM A182 & ASME SA182 |
| Grades | F1, F5, F9, F11, F12, F22, F91 |
| Standards | ASTM B564 / A182 |
| Grade | Nickel Alloy 200, Nickel Alloy 201 |
| Standards | ASTM B366 / ASME SB366 |
| Grades | Inconel 600, 601 ,625,718, Incoloy 800 / 800H / 800HT, 825, 925,330/ SS 330/ Ra 330 |
| Standards | ASTM B366 / ASME SB366 |
| Grades | Monel 400, Monel K500 |
| Standards | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Grades | Hastelloy C22,276,B2,B3,X |
| Standards | ASTM B381 & ASME B381 |
| Grade | F2, F5 (Ti6AI4V), F7 |
| Standards | IS, BS, ASTM,ANSI B16.11, S/W & SCRD |
| Description | Class Designation | ||
|---|---|---|---|
| 3000 | 6000 | 9000 | |
| Elbows 45 and 90 degrees, Tees, Crosses, Couplings, Half-Couplings, End or Pipe Caps |
1/2 – 4 | 1/2 – 2 | 1/2 – 2 |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| Pipe Size by Wall Thickness |
SCH 80 / XS | SCH 160 | XXS |
| Nominal Pipe Size | All Fittings | All Fittings | All Fittings | ASME B16.9 Elbows and Tees | ASME B16.9 180 Deg Return Bends | ASME B16.9 180 Deg Return Bends | ASME B16.9 180 Deg Return Bends | ASME B16.9 Reducers | ASME B16.9 Caps |
|---|---|---|---|---|---|---|---|---|---|
| NPS | O.D. at Bevel (1), (2) | I.D. at End (1), (3), (4) |
Wall Thickness (3) | Centre-to-End Dimension A,B,C,M | Centre-to-Centre O | Back-to-Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| ½ to 2½ | 0.06 -0.03 |
0.03 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3 ½ | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 -0.06 |
0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 -0.12 |
0.12 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 | 0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.19 | … | … | … | 0.19 | 0.38 |
| DN-NPT | MAJOR DIAMETER MM | TAPPING /DRILL SIZE MM | TPI | PITCH MM |
|---|---|---|---|---|
| 1/16″ | 7.895 | 6.00 | 27 | 0.941 |
| 1/8″ | 10.242 | 8.25 | 27 | 0.941 |
| 1/4″ | 13.616 | 10.70 | 18 | 1.411 |
| 3/8″ | 17.055 | 14.10 | 18 | 1.411 |
| 1/2″ | 21.223 | 17.40 | 14 | 1.814 |
| 3/4″ | 26.568 | 22.60 | 14 | 1.814 |
| 1″ | 33.228 | 28.50 | 11.5 | 2.209 |
| 1¼” | 41.985 | 37.00 | 11.5 | 2.209 |
| 1½” | 48.054 | 43.50 | 11.5 | 2.209 |
| 2″ | 60.092 | 55.00 | 11.5 | 2.209 |
| 2½” | 72.699 | 65.50 | 8 | 3.175 |
| 3″ | 88.608 | 81.50 | 8 | 3.175 |
| 3½” | 101.316 | 94.30 | 8 | 3.175 |
| 4″ | 113.973 | 107.00 | 8 | 3.175 |
| 5″ | 141.300 | 134.384 | 8 | 3.175 |
| 6″ | 168.275 | 161.191 | 8 | 3.175 |
| 8″ | 219.075 | 211.673 | 8 | 3.175 |
| 10″ | 273.050 | 265.311 | 8 | 3.175 |
| 12″ | 323.850 | 315.793 | 8 | 3.175 |
Max Steel & Engineering Co. manufactures and exports Forged Fittings to various countries such as Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Spain, France, United Kingdom, Indonesia, Israel, Iran, Russia, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia
Max Steel & Engineering Co. manufactures and exports Forged Fittings to multiple cities such as Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, Seoul, Hyderabad, Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad, Houston, Dubai, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Howrah, Sydney, Ahvaz, Karachi, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo.
Please feel free to contact us. We will get back to you with 2 business days. Or just call us now.
Max Steel & Engineering Co. is a major high-quality Stainless Steel Manufacturer & Supplier in India. Stainless Steel products are available in a variety of Dimensions, Sizes, Lengths, and Specifications to meet the specific needs of our clients.
Our Mission
Our mission is to be a premier provider of stainless steel solutions, offering products that meet the highest industry standards and exceed the expectations of our customers. We strive to contribute to the success of our clients by providing them with durable, innovative, and sustainable stainless steel products.
Max Steel & Engineering Co. provides Forged Fittings at reasonable prices in the market. You can Contact us to get the updated price list of Forged Fittings.
