Max Steel & Engineering Co.is the most dependable producer, supplier, and exporter of pipes and tubes in a wide range of shapes, sizes, and material grades. We use high-quality materials and cutting-edge manufacturing equipment to create products that satisfy our clients' expectations. Our exclusive range of pipes and tubes is gaining popularity throughout sectors.

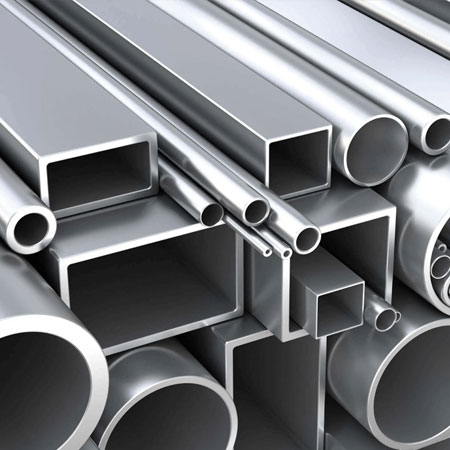

Pipes and tubes are tubular or hollow cylinders in circular and various shapes that transfer fluids and gases. In many industries, piping and tubing are the most often used systems for moving fluid from one location to another. We manufacture these goods in accordance with national and international quality standards such as ASME, ASTM, ANSI, BS, and others.
We use high-grade materials and advanced manufacturing machinery in order to produce products that satisfy customer’s requirements. Our exclusive range of pipes & tubes is more popular in different industries. All these types are manufactured using diverse material grades like Stainless Steel, Duplex & Super Duplex Steel, Hastelloy, Monel, Inconel, Nickel, Carbon Steel, Alloy Steel, and Cupronickel, etc.
We produce these Pipes and Tubes with added benefits and functionality to satisfy industrial needs and demand. They carry out destructive and non-destructive tests in order to preserve consistency and examine all circumstances.
All pipes and tubes undergo rigorous testing to guarantee quality and performance: Hydrostatic Testing, Eddy Current Test, Ultrasonic Test, Radiographic Inspection, Tensile, Hardness & Impact Tests, PMI (Positive Material Identification).
| Specifications | ASTM, ASME, API, IBR, DIN, BS, EN, IS, AMS, JIS, & Other International Standards. |
| Seamless Tube Size | 1/2" NB - 16" NB |
| Welded Tube Size | 1/2" NB - 24" NB |
| EFW Tube Size | 6" NB - 24" NB |
| Pipe Size | 1/2" NB - 60" NB |
| Outside Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB |
| Schedule | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Type | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
| Form | Round, Square, Rectangular, Hydraulic Etc |
| Length | Single Random, Double Random & Cut Length. |
| End | Plain End, Beveled End, Treaded |

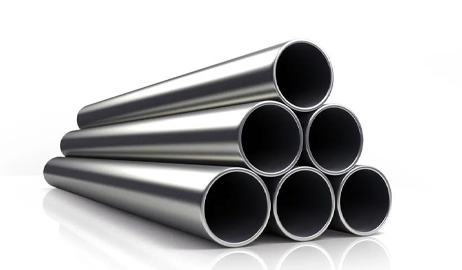

Seamless Pipes & Tubes

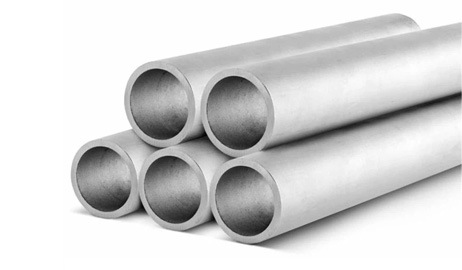

Welded Pipes & Tubes

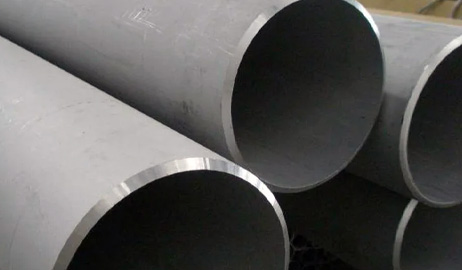

ERW Pipes & Tubes

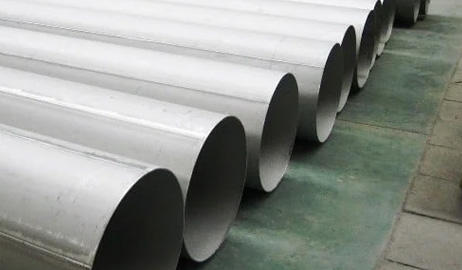

EFW Pipes & Tubes

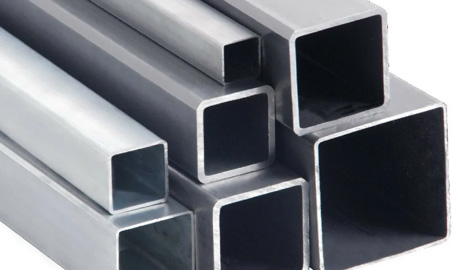

Square Pipes & Tubes

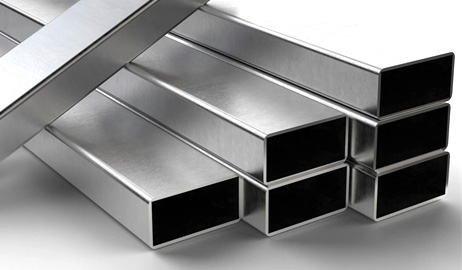

Rectangular Pipes & Tubes

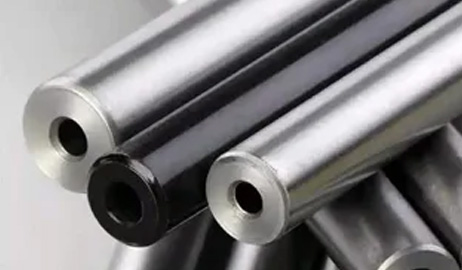

Hydraulic Pipes & Tubes
Bevel End Pipes & Tubes

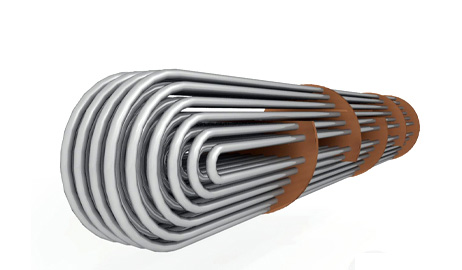

Heat Exchanger Tubing

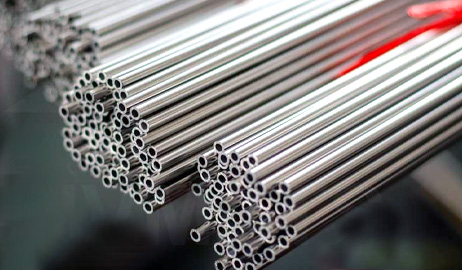

Capillary Tubing

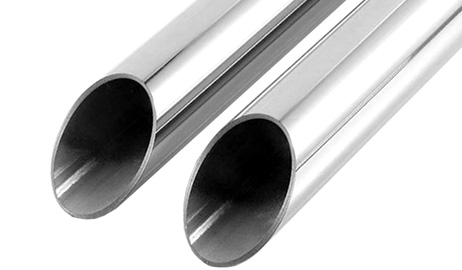

Electro Polished Pipes & Tubes

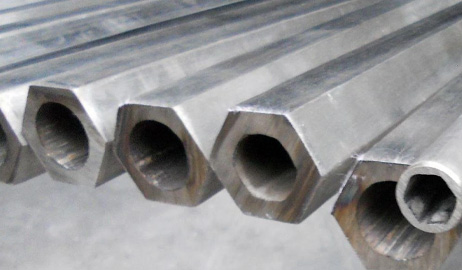

Hexagonal Pipes & Tubes
| Material | Size | Sch. & Swg. | Specification |
|---|---|---|---|
| Seamless Pipe | 15 mm NB To 300 mm NB | Sch. 5s, 10s, 40s, 80s, 160s, XXS | A-312 |
| Welded (ERW) Pipe | 15 mm NB To 300 mm NB | Sch. 5s, 10, 40s & 80s | A-312 |
| Welded (ERW) Pipe | 150 mm NB To 600 mm NB | Sch. 5s, 10s, 40s, 80s | A-358 |
| Seamless Tube | 6.35 mm OD To 101.6 mm OD | 20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg. | A-213 |
| Welded (ERW) Tube | 6.35 mm OD To 152 mm OD | 20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg. | A-249 |
| Standards | ASTM A312 / A213 / A269 / A358 / A778 |
| Grades | TP 201, 202, 301, 302, 304, 304L, 309, 310, 316, 316L, 316LN, 316Ti, 317L, 321, 347, 405, 409, 410, 420, 430, 440C, 904L, AL-6XN (N08367). |
| Standards | ASTM A335 / A213 |
| Grades | P11, P12, P22, P5, P9, P91, T11, T12, T22, T5, T9, T91. |
| Standards | ASTM A106 / A53 / A179 / A333 / A210 |
| Grades | Gr. B, API 5L X42/X46/X52/X56/X60/X65/X70 PSL-1 / PSL-2, Gr, 3, 6, IS 1239, IS 3589, Boiler Tube – BS 3059 – Gr. 320, 360, Gr. A1, BS 6323. |
| Standards | ASTM A789, A790, A928 |
| Grades | 2205 (S31803 / S32205), SMO254 (S32154), 2507 (S32750 / S32760), Ferralium 255 (S32550), SMO 654 (S32654). |
| Standards | ASTM B 161 ASME SB 161 / ASTM B729 ASME SB729 |
| Grade | 200 (N02200), 201 (N02201), Alloy 20 (N08020). |
| Standards: | ASTM B165 ASME SB165 / ASTM B725 ASME SB725 |
| Grade | 400 (N04400), 500 (N05500). |
| Standards | ASTM B167,B444, B407, B423, B677 |
| Grade | 600 (N06600), 601 (N06601), 625 (N06625), 718 (N07718), 800 (N08800), 800H (N08810), 800HT (N08811),– 825 (N08825), 904L (N08904). |
| Standards | ASTM B111 ASME SB111 / ASTM B466 ASME SB466 |
| Grade | Commercial, ETP, OFE, CuNi 90/10 (C70600), CuNi 70/30 (C71500), Brass, Naval Brass, Aluminium Bronze, Admiralty Brass. |
| Standards | ASTM B622 ASME SB622 / ASTM B619 ASME SB619 |
| Grade | C726 (N10276), C4 (N06455), C22 (N06022), C2000 (N06200), X (N06002), B2 (N10665), B3 (N10675). |
| Standards | ASTM B338 / B861 / B862 |
| Grade | 2, 5 (Ti6AI4V), 7. |
| Standards | ASTM B 466 ASME SB 466 / ASTM B 467 ASME SB 467 |
| Grade | Cupro Nickel 90 / 10 & Cupro Nickel 70/30 |
| Standards | ASTM B 280 ASME SB 280 / ASTM B 68 ASME SB 68 |
| Grade | C12200 |
| Grade | IS – 1239 (Part -1) 2004, Equivalent to BS – 1387 / 1985 |
| Nominal | O.D. Inches | 10s | 10 | 40s & Std | 40 | 80s & E.H. | 80 | 160 |
|---|---|---|---|---|---|---|---|---|
| 1/8 | .405 | .049 | .049 | .068 | .068 | .095 | .095 | |
| 1/4 | .540 | .065 | .065 | .088 | .088 | .119 | .119 | |
| 3/8 | .675 | .065 | .065 | .091 | .091 | .126 | .126 | |
| 1/2 | .840 | .083 | .083 | .109 | .109 | .147 | .147 | .187 |
| 3/4 | 1.050 | .083 | .083 | .113 | .113 | .154 | .154 | .218 |
| 1 | 1.315 | .109 | .109 | .133 | .133 | .179 | .179 | .250 |
| 1 1/4 | 1.660 | .109 | .109 | .140 | .140 | .191 | .191 | .250 |
| 1 1/2 | 1.900 | .109 | .109 | .145 | .145 | .200 | .200 | .281 |
| 2 | 2.375 | .109 | .109 | .154 | .154 | .218 | .218 | .343 |
| 2 1/2 | 2.875 | .120 | .120 | .203 | .203 | .276 | .276 | .375 |
| 3 | 3.500 | .120 | .120 | .216 | .216 | .300 | .300 | .437 |
| 3 1/2 | 4.000 | .120 | .120 | .226 | .226 | .318 | .318 | |
| 4 | 4.500 | .120 | .120 | .237 | .237 | .337 | .337 | .531 |
| 4 1/2 | 5.000 | .247 | .355 | |||||
| 5 | 5.563 | .134 | .134 | .258 | .258 | .375 | .375 | .625 |
| 6 | 6.625 | .134 | .134 | .280 | .280 | .432 | .432 | .718 |
| 7 | 7.625 | .301 | .500 | |||||
| 8 | 8.625 | .148 | .148 | .322 | .322 | .500 | .500 | .906 |
| 9 | 9.625 | .342 | .500 | |||||
| 10 | 10.750 | .165 | .165 | .365 | .365 | .500 | .593 | 1.125 |
| 11 | 11.750 | .375 | .500 | |||||
| 12 | 12.750 | .180 | .180 | .375 | .406 | .500 | .687 | 1.312 |
| 14 | 14.000 | .188 | .250 | .375 | .437 | .500 | .750 | 1.406 |
| 16 | 16.000 | .188 | .250 | .375 | .500 | .500 | .843 | 1.593 |
| 18 | 18.000 | .188 | .250 | .375 | .562 | .500 | .937 | 1.781 |
| Nominal size in Inches | Outside diameter in Inches | Outside diameter in MM | Wall thickness in Inches | Wall thickness in MM | Weight in lb/ft | Weight in kg/m |
|---|---|---|---|---|---|---|
| 1/2 | 0.840 | 21.3 | 0.083 | 2.11 | 0.68 | 1.00 |
| 3/4 | 1.050 | 26.7 | 0.083 | 2.11 | 0.87 | 1.29 |
| 1 | 1.315 | 33.4 | 0.109 | 2.77 | 1.41 | 2.11 |
| 1 1/4 | 1.660 | 42.2 | 0.109 | 2.77 | 1.82 | 2.71 |
| 1 1/2 | 1.900 | 48.3 | 0.109 | 2.77 | 2.1 | 3.13 |
| 2 | 2.375 | 60.3 | 0.109 | 2.77 | 2.66 | 3.96 |
| 2 1/2 | 2.875 | 73.0 | 0.120 | 3.05 | 3.56 | 5.29 |
| 3 | 3.500 | 88.9 | 0.120 | 3.05 | 4.37 | 6.50 |
| 3 1/2 | 4.000 | 101.6 | 0.120 | 3.05 | 5.01 | 7.46 |
| 4 | 4.500 | 114.3 | 0.120 | 3.05 | 5.66 | 8.42 |
| 5 | 5.563 | 141.3 | 0.134 | 3.40 | 7.82 | 11.64 |
| 6 | 6.625 | 168.3 | 0.134 | 3.40 | 9.35 | 13.91 |
| 8 | 8.625 | 219.1 | 0.148 | 3.76 | 13.50 | 20.10 |
| 10 | 10.750 | 273.1 | 0.165 | 4.19 | 18.79 | 27.96 |
| 12 | 12.750 | 323.9 | 0.180 | 4.57 | 24.34 | 36.22 |
| 14 | 14.000 | 355.6 | 0.188 | 4.78 | 27.97 | 41.62 |
| 16 | 16.000 | 406.4 | 0.188 | 4.78 | 32.02 | 47.65 |
| 18 | 18.000 | 457.0 | 0.188 | 4.78 | 36.05 | 53.65 |
| 20 | 20.000 | 508.0 | 0.218 | 5.54 | 46.42 | 69.09 |
| 22 | 22.000 | 559.0 | 0.218 | 5.54 | 51.14 | 76.10 |
| 24 | 24.000 | 610.0 | 0.250 | 6.35 | 63.93 | 95.13 |
| 30 | 30.000 | 762.0 | 0.312 | 7.92 | 99.60 | 148.22 |
